Available from:
Item.taobao.com
Item.taobao.com
Manufacturer:
Shop584181904.taobao.com
Install method:
Tasmota pre-installed
| GPIO # | Component |
|---|---|
| GPIO00 | None |
| GPIO01 | None |
| GPIO02 | None |
| GPIO03 | Led_i 1 |
| GPIO04 | Button 1 |
| GPIO05 | None |
| GPIO06 | Relay 1 |
| GPIO07 | LedLink |
| GPIO08 | None |
| GPIO09 | None |
| GPIO10 | BL0492 Rx |
| GPIO11 | None |
| GPIO12 | None |
| GPIO13 | None |
| GPIO14 | None |
| GPIO15 | None |
| GPIO16 | None |
| GPIO17 | None |
| GPIO18 | Serial Tx |
| GPIO19 | None |
| GPIO20 | None |
{"NAME":"HY-ZGCZ008","GPIO":[0,0,0,320,32,0,224,544,0,0,8160,0,0,0,0,0,0,0,3200,0,0],"FLAG":0,"BASE":1}6

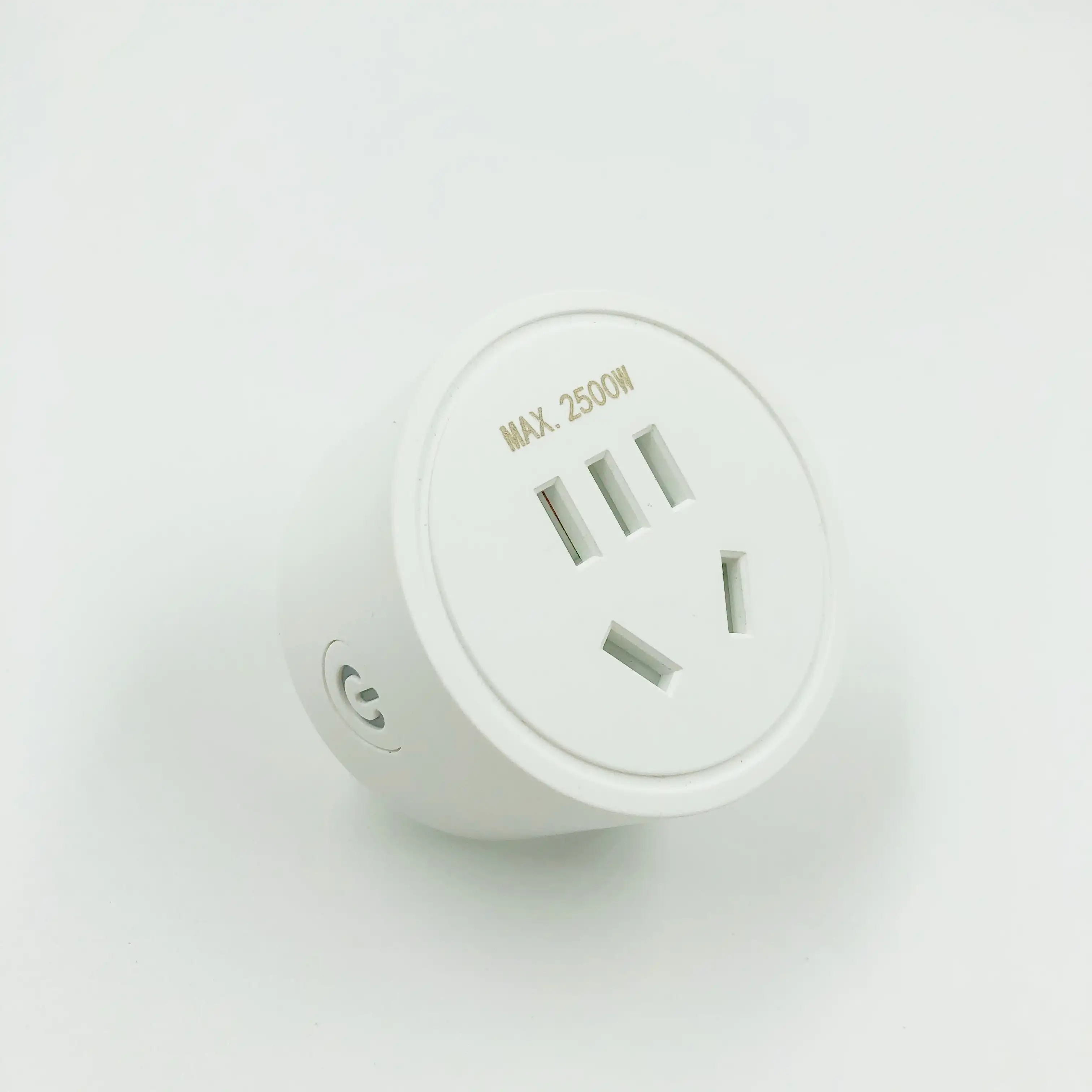

A smart plug produced by HYDIZI (宏盈电子), sold on Taobao with different firmwares, including Tuya and Tasmota.
Some versions of the plug have no power monitoring capability, but they seem to share the same shell and model number.

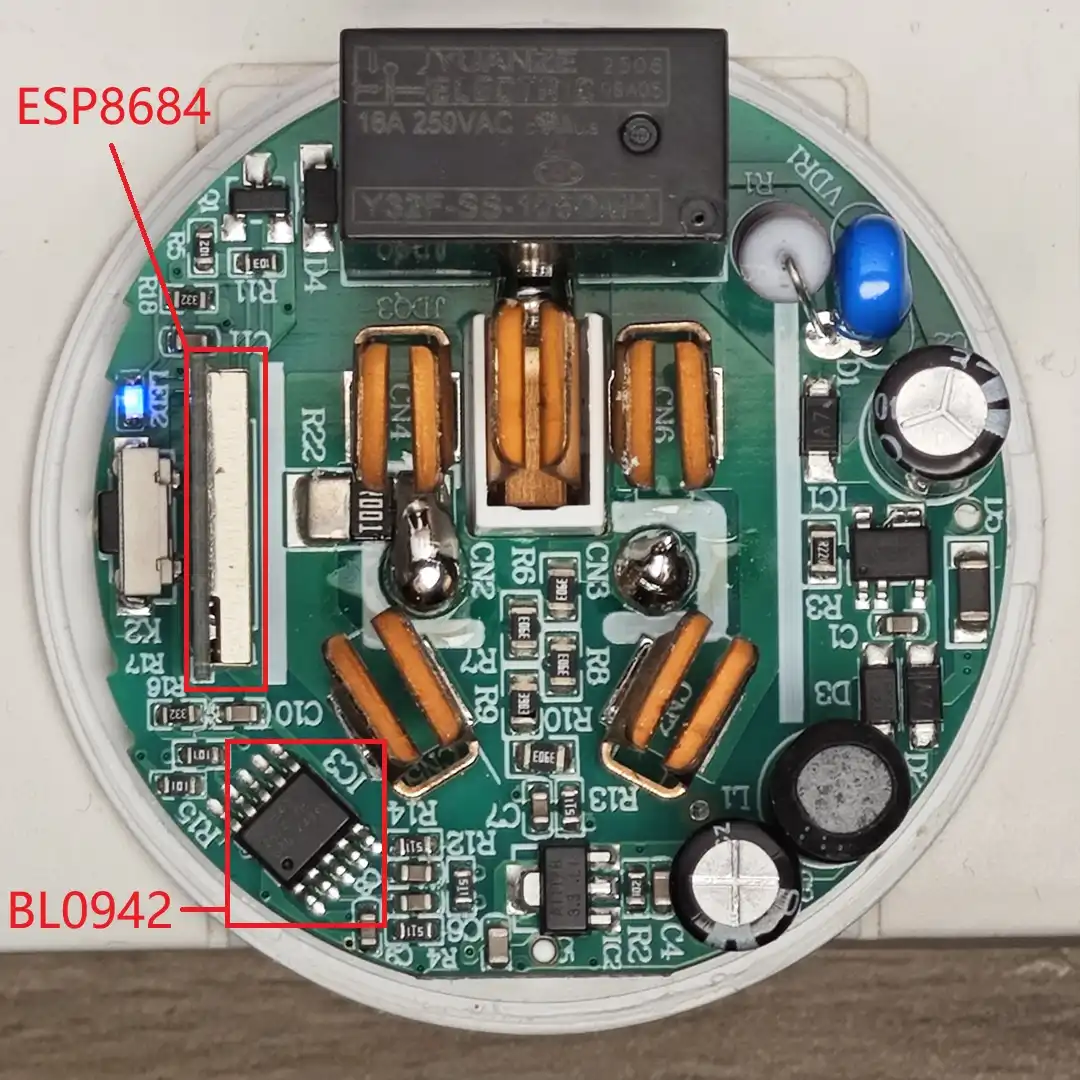

The power monitoring version uses a ESP8684-WROOM-03 with 4MB flash and a BL0942 power monitoring chip.
