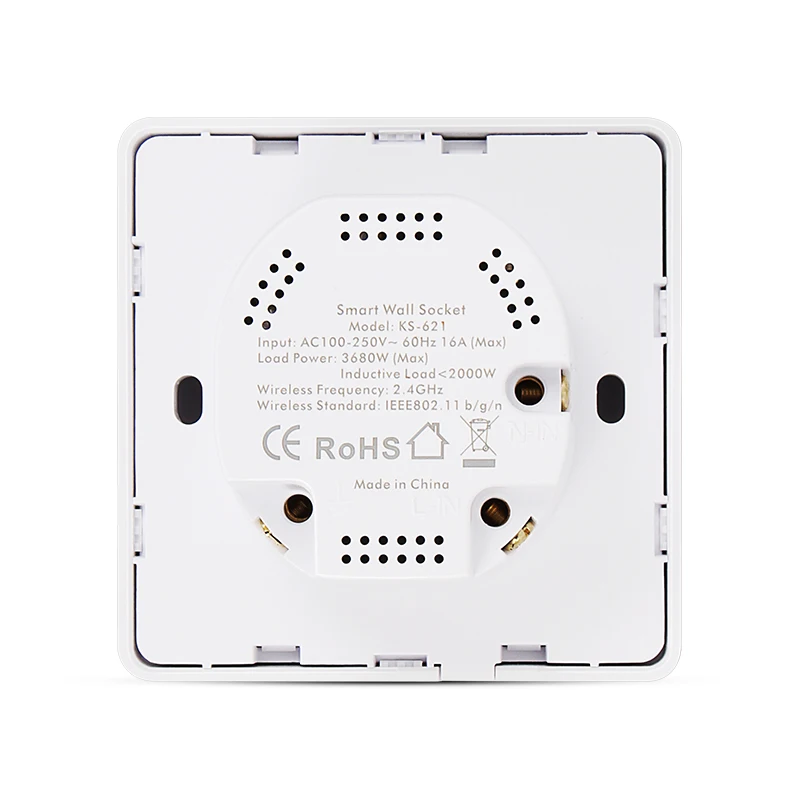

KS-621 Power Monitoring Wall Outlet
Available from:
Aliexpress.com
Aliexpress.com
Manufacturer:
Hidintech.com
Install method:
Tuya-Convert
| GPIO # | Component |
|---|---|
| GPIO00 | Button1 |
| GPIO01 | None |
| GPIO02 | None |
| GPIO03 | None |
| GPIO04 | HLW8012 CF |
| GPIO05 | HLWBL CF1 |
| GPIO09 | None |
| GPIO10 | None |
| GPIO12 | HLWBL SEL |
| GPIO13 | Led1 |
| GPIO14 | None |
| GPIO15 | Relay1 |
| GPIO16 | Button2n |
| FLAG | User |
Configuration (old format, will be converted to new template when applied)
{"NAME":"KS-621","GPIO":[17,0,0,0,133,132,0,0,130,52,0,21,91],"FLAG":15,"BASE":18}
For more accurate energy consumption measurements this device requires power monitoring calibration.
WARNING: New Tuya devices have replaced their Wi-Fi module with one incompatible with Tasmota!!!
Tuya-Convert might not be possible for this device since the template was added (2020-01-03).
WARNING: New Tuya devices have replaced their Wi-Fi module with one incompatible with Tasmota!!!
Tuya-Convert might not be possible for this device since the template was added (2020-01-03).
