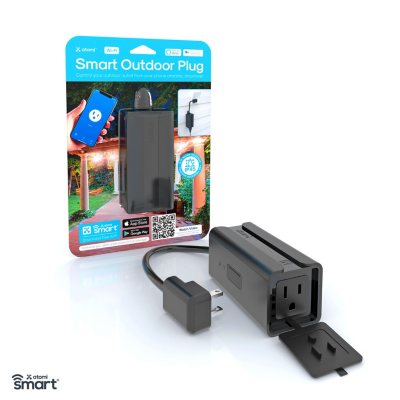

Atomi Outdoor Plug (AT1320)
Available from:
Amazon.com
Manufacturer:
Atomismart.com
Install method:
USB to Serial
| GPIO # | Component |
|---|---|
| GPIO00 | None |
| GPIO01 | None |
| GPIO02 | None |
| GPIO03 | None |
| GPIO04 | Led_i 1 |
| GPIO05 | LedLinki |
| GPIO09 | None |
| GPIO10 | None |
| GPIO12 | Relay 1 |
| GPIO13 | Button 1 |
| GPIO14 | None |
| GPIO15 | None |
| GPIO16 | None |
| GPIO17 | None |
Configuration
{"NAME":"AtomiSmartPlug","GPIO":[0,0,0,0,320,576,0,0,224,32,0,0,0,0],"FLAG":0,"BASE":18}Configuration (old format, will be converted to new template when applied)
{"NAME":"AT1320","GPIO":[0,0,0,0,57,52,0,0,21,17,0,0,0],"FLAG":0,"BASE":18}Solderd headers to bottom of TYWE2S
- First pin on inside side is 3V, then GND, RX and TX
- Short I00 to GND at power on to enter flashing mode
13820/AT1320 and AT1320 are the same device.
Pinout
.
