eWelink Sinbgle Wire 1 Gang 2 Way No Neutral RF433Mhz Switch
GLOBAL

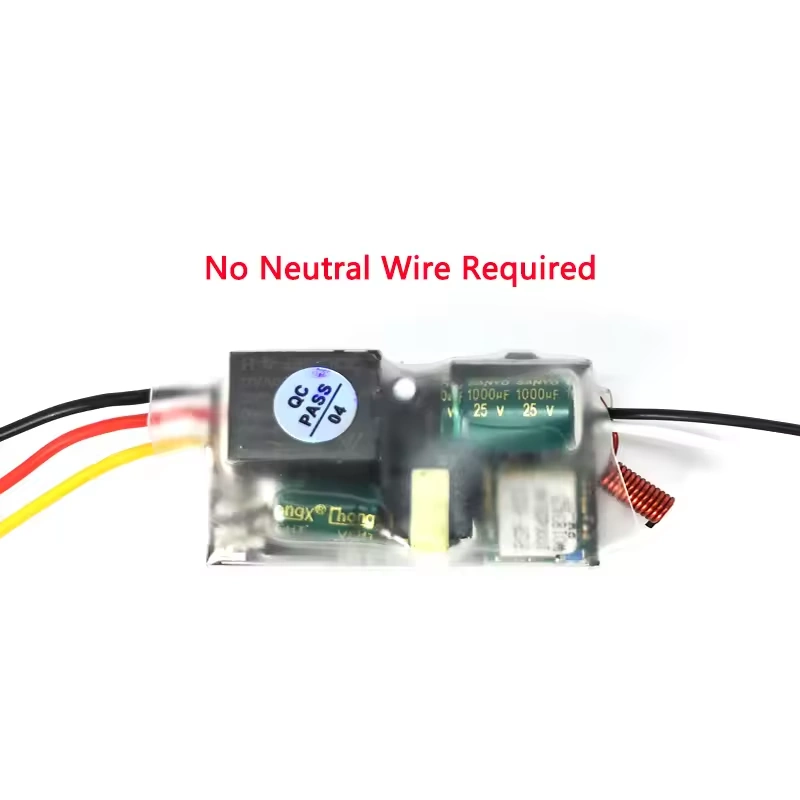

eWelink Sinbgle Wire 1 Gang 2 Way No Neutral RF433Mhz

Available from:
Aliexpress.com







Install method:
USB to Serial

GPIO #Component
GPIO00 Button 1
GPIO01 User
GPIO02 None
GPIO03 User
GPIO04 None
GPIO05 None
GPIO09 User
GPIO10 User
GPIO12 Relay 1
GPIO13 Led_i 1
GPIO14 None
GPIO15 None
GPIO16 None
GPIO17 User
Configuration
Edit on GitHub
{"NAME":"2 way relay no neutral","GPIO":[32,1,0,1,0,0,1,1,224,320,0,0,0,1],"FLAG":0,"BASE":18}

Ewelink 2 Way No Neutral RF

  • No extra wires needed, just capacitor to be installed on the light fixture
  • Only 2 terminals required from each for installation, technically 1 way switches should work just fine.

Normal 2 way wiring https://ae01.alicdn.com/kf/Hcfd0aa4a354a4b50838dfea03b262eddO.jpg

With 2 way relay installed https://ae01.alicdn.com/kf/Hb695ce18586f4b20a981283729cdfe0fC.jpg

Flashing pins (soldering required) https://github.com/ferbulous/test/blob/main/devices/ewelink-2-way-relay-no-neutral/3528d685-6ce1-4493-b574-9d0d7519792b.jpg
