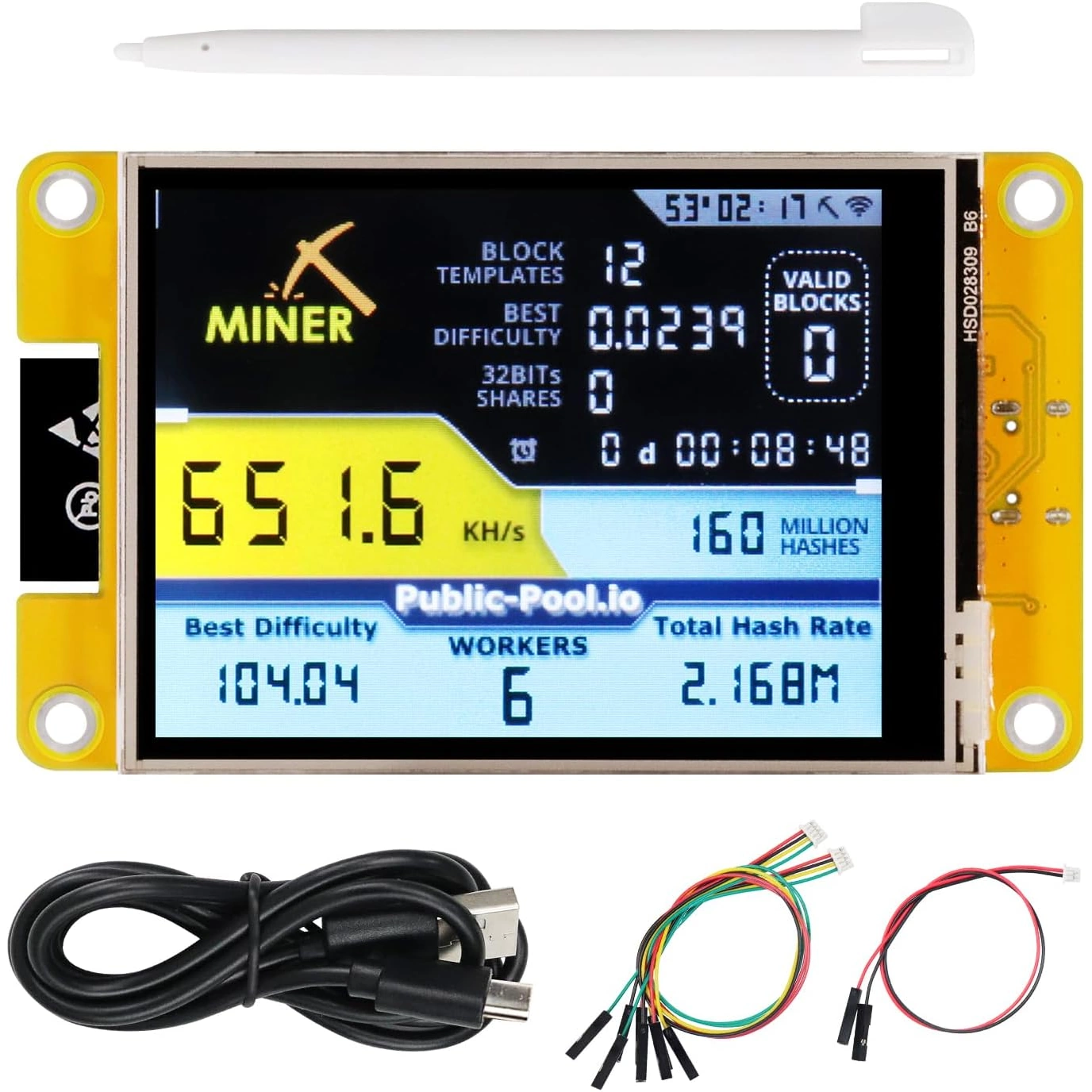

Freenove ESP32 Display Display (FNK0103)
Available from:
Amazon.com
Aliexpress.com
Manufacturer:
Docs.freenove.com
Install method:
USB to Serial
| GPIO # | Component |
|---|---|
| GPIO00 | User |
| GPIO01 | User |
| GPIO02 | SSPI DC |
| GPIO03 | User |
| GPIO04 | User |
| GPIO05 | SDCard CS |
| GPIO09 | Option A3 |
| GPIO10 | None |
| GPIO12 | SSPI MISO |
| GPIO13 | SSPI MOSI |
| GPIO14 | SSPI SCLK |
| GPIO15 | SSPI CS |
| GPIO16 | PWM_i 2 |
| GPIO17 | PWM_i 3 |
| GPIO18 | SPI CLK |
| GPIO19 | SPI MISO |
| GPIO20 | None |
| GPIO21 | BkLight |
| GPIO22 | PWM_i 4 |
| GPIO23 | SPI MOSI |
| GPIO24 | None |
| GPIO25 | SPI CLK 2 |
| GPIO26 | User |
| GPIO27 | SPI CS |
| GPIO28 | None |
| GPIO29 | None |
| GPIO30 | None |
| GPIO31 | None |
| GPIO32 | SPI MOSI 2 |
| GPIO33 | ??? |
| GPIO34 | ??? |
| GPIO35 | User |
| GPIO36 | ??? |
| GPIO37 | None |
| GPIO38 | None |
| GPIO39 | SPI MISO 2 |
Configuration
{"NAME":"Freenove ESP32 Display","GPIO":[1,1,960,1,1,6720,6210,0,832,864,896,928,449,450,736,672,0,992,451,704,0,737,1,768,0,0,0,0,705,10944,11264,1,11008,0,0,673],"FLAG":0,"BASE":1}Display.ini:
:H,ST7789,320,240,16,SPI,3,*,*,*,*,*,*,*,40
:S,2,1,3,0,0,0
:I
01,A0
11,A0
3A,81,55
36,81,00
21,80
13,80
29,A0
:o,28
:O,29
:A,2A,2B,2C
:R,36
:0,60,00,00,00
:1,C0,00,00,01
:2,A0,00,00,02
:3,00,00,00,03
:i,20,21
:UTI,XPT2046,S2,*,-1,*
CPR 00
RT
:M,173,3722,240,3856
:UTT
XPT 300
RT
:UTX
MV 0 2
DBG 1
RT
:UTY
MV 2 2
RT
#
