{"NAME":"IoTextra SSR Small","GPIO":[1,1,262,261,260,263,1,1,1,256,257,640,608,1,1,1,1,258,259,1,1,1,0,0,0,0,0,1,1,1,1,1,1,1,1,1,1,1],"FLAG":0,"BASE":1}

This device uses a Tasmota incompatible module which needs to be replaced with an ESP. Besides the module, this process will require a heat gun, soldering tools and moderate soldering skill.

Overview

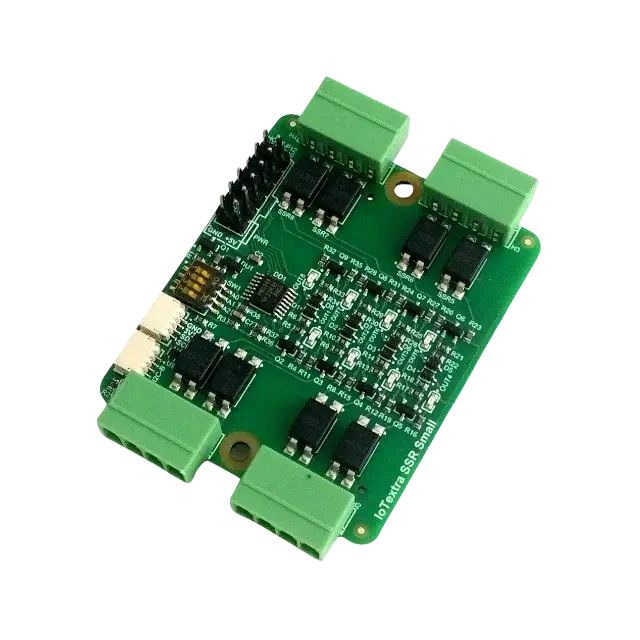

The IoTextra SSR Small module is designed for applications that require silent, high-speed, and reliable switching without mechanical wear. Each SSR channel is individually isolated, ensuring safe operation and protection of control electronics.

This module is suitable for:

• AC or DC load control
• Compact automation systems
• Industrial and hobbyist projects requiring multiple relay channels

As part of the IoTextra series, it combines industrial-grade reliability with the flexibility of modular hardware, following the Make Things Happy philosophy.

---

Documentation and Resources

Setup instructions, configuration commands, and additional guides can be found here:

• Project repository:
  https://github.com/makethingshappy/IoThome

• Vendor website:
  https://makethingshappy.io
