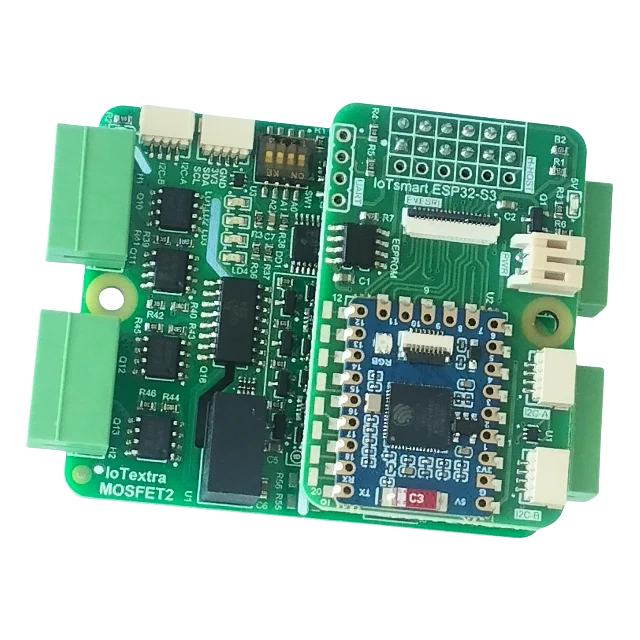

IoTextra MOSFET2 8-channel galvanically isolated output module Relay Board (04020630212B)
Available from:
Makethingshappy.io
Manufacturer:
Makethingshappy.io
| GPIO # | Component |
|---|---|
| GPIO00 | User |
| GPIO01 | User |
| GPIO02 | User |
| GPIO03 | User |
| GPIO04 | Relay_i 1 |
| GPIO05 | Relay_i 2 |
| GPIO09 | Relay_i 3 |
| GPIO10 | Relay_i 4 |
| GPIO12 | Relay_i 5 |
| GPIO13 | Relay_i 6 |
| GPIO14 | Relay_i 7 |
| GPIO15 | Relay_i 8 |
| GPIO16 | User |
| GPIO17 | User |
| GPIO18 | User |
| GPIO19 | I2C SCL 1 |
| GPIO20 | I2C SDA 1 |
| GPIO21 | User |
| GPIO22 | User |
| GPIO23 | None |
| GPIO24 | None |
| GPIO25 | None |
| GPIO26 | None |
| GPIO27 | None |
| GPIO28 | None |
| GPIO29 | None |
| GPIO30 | None |
| GPIO31 | None |
| GPIO32 | None |
| GPIO33 | None |
| GPIO34 | None |
| GPIO35 | None |
| GPIO36 | None |
| GPIO37 | None |
| GPIO38 | None |
| GPIO39 | None |
| GPIO40 | None |
| GPIO41 | None |
| GPIO42 | None |
| GPIO43 | None |
| GPIO44 | None |
| GPIO45 | None |
| GPIO46 | None |
| GPIO47 | None |
| GPIO48 | None |
| GPIO49 | None |
| GPIO50 | None |
| GPIO51 | None |
Configuration
{"NAME":"IoTextra MOSFET2","GPIO":[1,1,1,1,256,257,258,259,260,261,262,263,1,1,1,608,640,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],"FLAG":0,"BASE":1}
