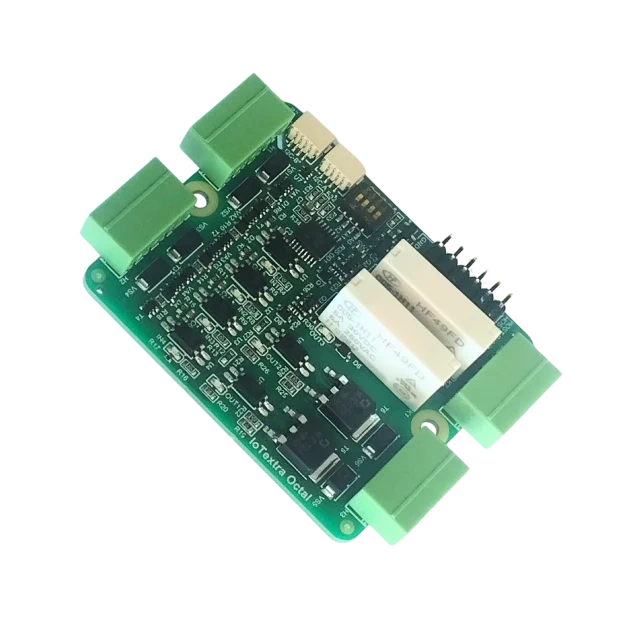

IoTextra Octal - Digital I/O and Relays Module Digital Expansion Module (4345923720)
GLOBAL
IoTextra Octal - Digital I/O and Relays Module

Available from:
Makethingshappy.io





Manufacturer:
Makethingshappy.io


GPIO #Component
GPIO00 User
GPIO01 User
GPIO02 User
GPIO03 User
GPIO04 Relay_i 1
GPIO05 Relay_i 2
GPIO09 Relay_i 3
GPIO10 Relay_i 4
GPIO12 Switch 1
GPIO13 Switch 2
GPIO14 Switch 3
GPIO15 Switch 4
GPIO16 User
GPIO17 User
GPIO18 User
GPIO19 I2C SCL 1
GPIO20 I2C SDA 1
GPIO21 User
GPIO22 User
GPIO23 None
GPIO24 None
GPIO25 None
GPIO26 None
GPIO27 None
GPIO28 None
GPIO29 None
GPIO30 None
GPIO31 None
GPIO32 None
GPIO33 None
GPIO34 None
GPIO35 None
GPIO36 None
GPIO37 None
GPIO38 None
GPIO39 None
GPIO40 None
GPIO41 None
GPIO42 None
GPIO43 None
GPIO44 None
GPIO45 None
GPIO46 None
GPIO47 None
GPIO48 None
GPIO49 None
GPIO50 None
GPIO51 None
Configuration
Edit on GitHub
{"NAME":"IoTextra Octal","GPIO":[1,1,1,1,256,257,258,259,160,161,162,163,1,1,1,608,640,1,1,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0],"FLAG":0,"BASE":1}
