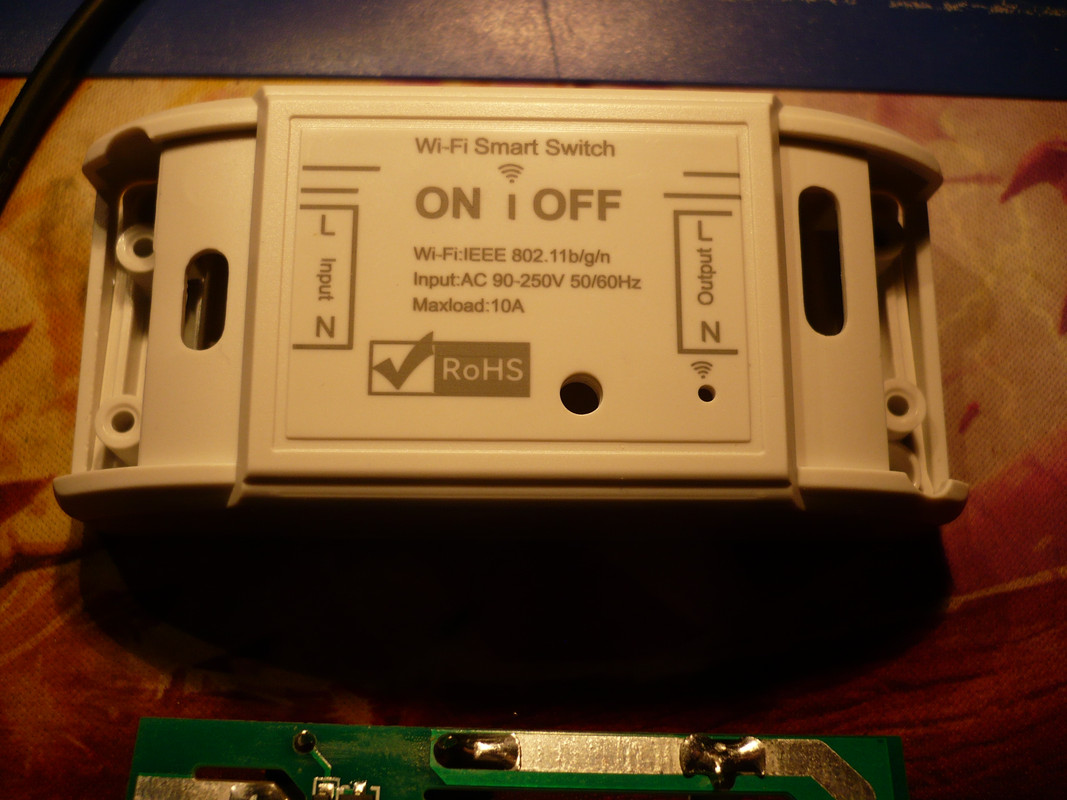

ONiOFF Smart Switch Switch Module
Available from:
Aliexpress.com
Install method:
USB to Serial
| GPIO # | Component |
|---|---|
| GPIO00 | User |

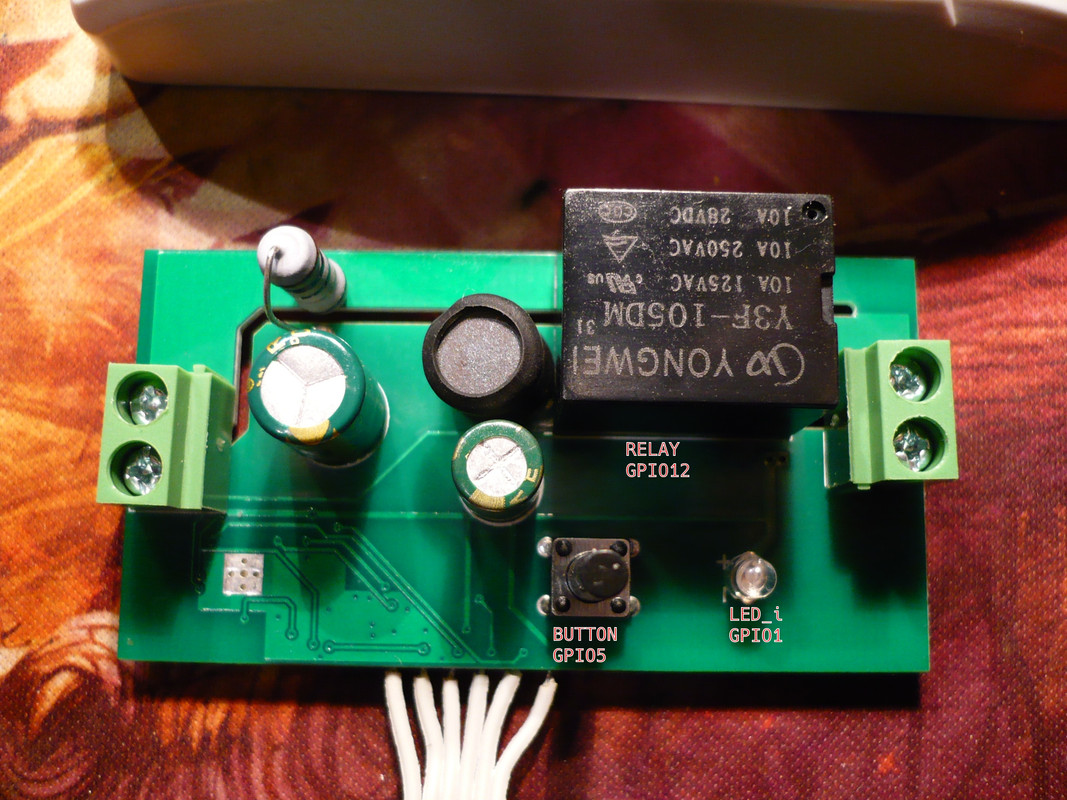

| GPIO01 | Led_i 1 |
| GPIO02 | User |
| GPIO03 | User |
| GPIO04 | User |
| GPIO05 | Button 1 |
| GPIO09 | None |
| GPIO10 | None |
| GPIO12 | Relay 1 |
| GPIO13 | User |
| GPIO14 | User |
| GPIO15 | None |
| GPIO16 | None |
| GPIO17 | None |
Configuration
{"NAME":"ONOFF SmartSwitch","GPIO":[1,320,1,1,1,32,0,0,224,1,1,0,0,0],"FLAG":0,"BASE":1}

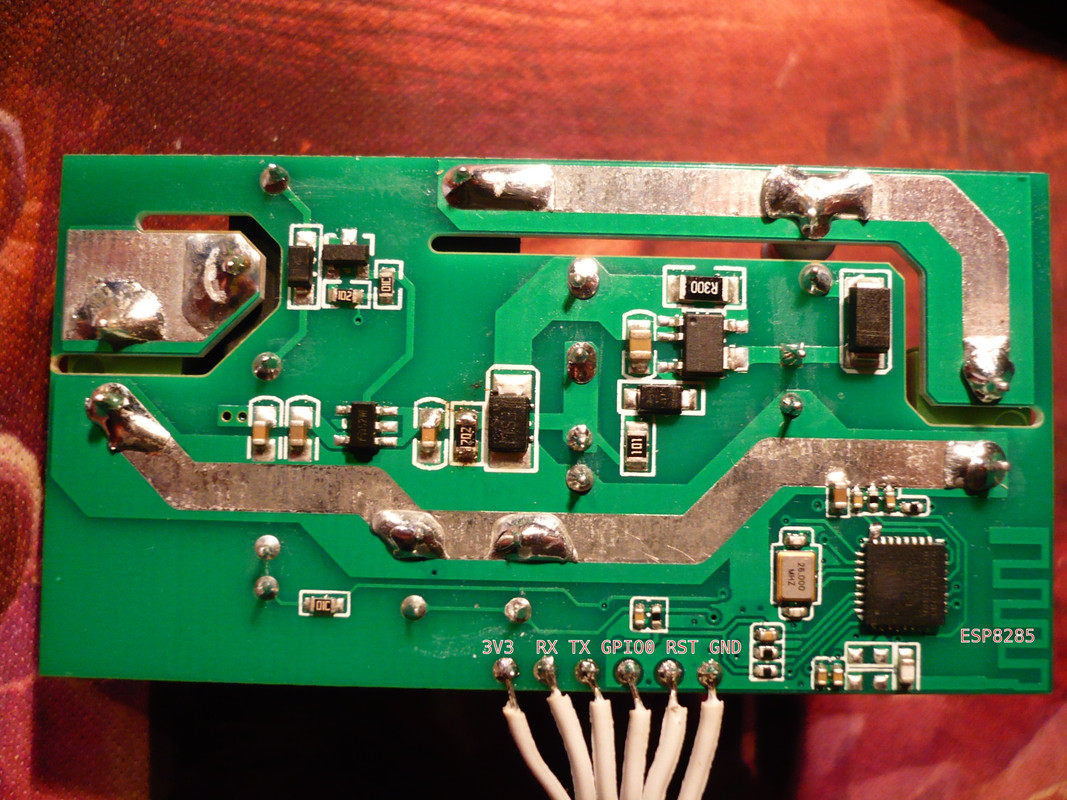

Standard serial flash procedure via exposed pads: 3V3, RX, TX, GPIO0, RST and GND. Connect standard USB to RS232 3V3 converter. Put GPIO0 low and then RST low for a sec.
Main chip is ESP8285N08 with 1MB flash. Standard tasmota.bin file is ok for flashing. I did it by esptool, but you can flash it in many ways.
