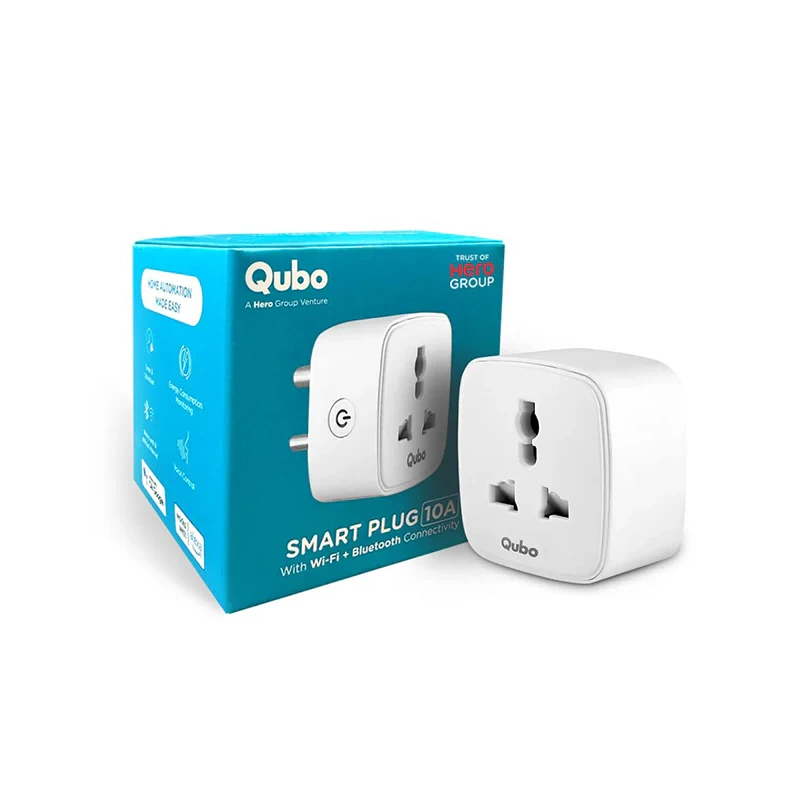

Qubo 10A Wi-Fi+BT Smart Plug Power Monitoring Plug (smart-plug-10a)
Available from:
Quboworld.com
Manufacturer:
Quboworld.com
Install method:
USB to Serial
| GPIO # | Component |
|---|---|
| GPIO00 | None |
| GPIO01 | None |
| GPIO02 | None |
| GPIO03 | HLWBL CF1 |
| GPIO04 | Relay 1 |
| GPIO05 | HLWBL SELi |
| GPIO09 | Led_i 1 |
| GPIO10 | BL0937 CF |
| GPIO12 | None |
| GPIO13 | None |
| GPIO14 | None |
| GPIO15 | None |
| GPIO16 | None |
| GPIO17 | None |
| GPIO18 | None |
| GPIO19 | None |
| GPIO20 | None |
| GPIO21 | None |
| GPIO22 | None |
| GPIO23 | None |
| GPIO24 | Button 1 |
| GPIO25 | None |
Configuration
{"NAME":"Qubo Smart Plug","GPIO":[0,0,0,2656,224,2624,320,2720,0,0,0,0,0,0,0,0,0,0,0,0,32,0],"FLAG":0,"BASE":1}
For more accurate energy consumption measurements this device requires power monitoring calibration.
This plug has ESP8685-WROOM-03 . It needs high current during boot so USB serial converter sometimes is not able to provide enough power so use external 3.3V . also use tasmota32c3.factory.bin instead of tasmota32c3.bin first time else chip will not boot after flash. image link https://www.quboworld.com/cdn/shop/files/smart-plug-10a_listing_01_40afd106-cb82-46de-9009-fa1ba1c92d37.png
