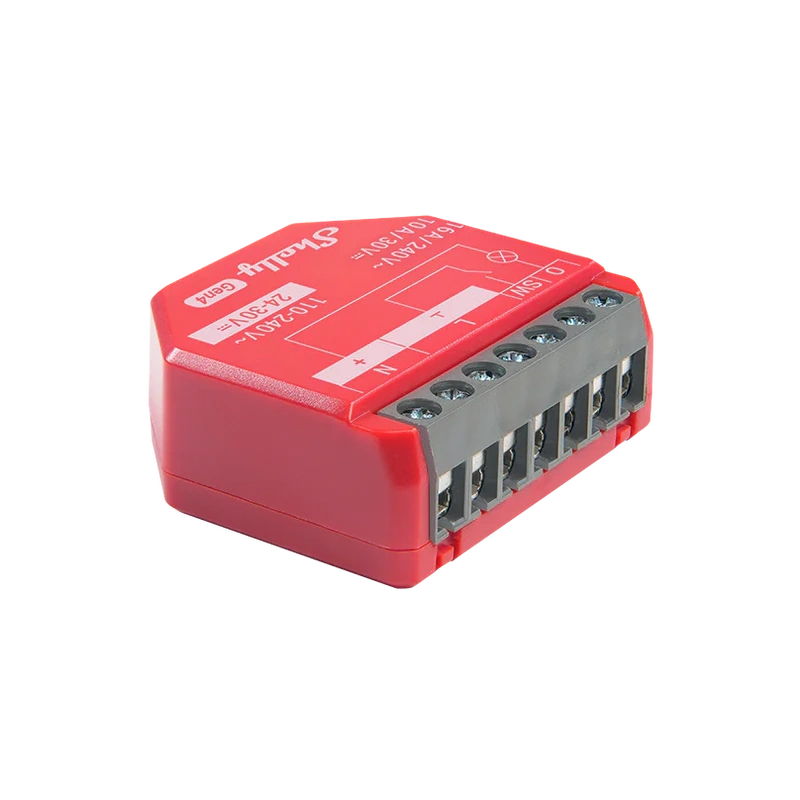

Shelly 1PM Gen4 Switch Module (1PM_Gen4)
Available from:
Amazon.com
Amazon.de
Domadoo.fr
Manufacturer:
Shelly.com
Install method:
USB to Serial
| GPIO # | Component |
|---|---|
| GPIO00 | User |
| GPIO01 | Button 1 |
| GPIO02 | User |
| GPIO03 | ADC Temp |
| GPIO04 | Relay 1 |
| GPIO05 | User |
| GPIO06 | Serial Tx |
| GPIO07 | BL0492 Rx |
| GPIO08 | User |
| GPIO09 | User |
| GPIO10 | Switch_n 1 |
| GPIO11 | User |
| GPIO12 | User |
| GPIO13 | User |
| GPIO14 | User |
| GPIO15 | User |
| GPIO16 | User |
| GPIO17 | User |
| GPIO18 | User |
| GPIO19 | User |
| GPIO20 | User |
| GPIO21 | User |
| GPIO22 | User |
| GPIO23 | User |
| GPIO24 | None |
| GPIO25 | None |
| GPIO26 | None |
| GPIO27 | None |
| GPIO28 | None |
| GPIO29 | None |
| GPIO30 | None |
Configuration for ESP32-C6
{"NAME":"Shelly1 PM Gen4","GPIO":[1,32,1,4736,224,1,3200,8161,1,1,192,1,1,1,1,1,1,1,1,1,1,1,1,1,0,0,0,0,0,0,0],"FLAG":0,"BASE":1}Serial pinout, same as the Shelly Plus 1PM
