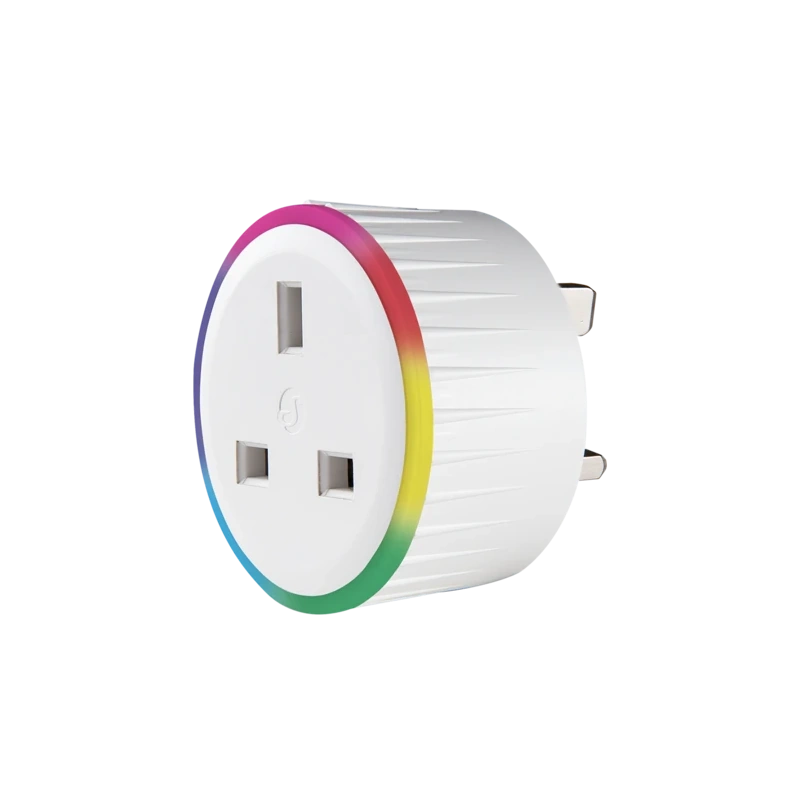

Shelly Plus Plug UK Power Monitoring Plug (PlusPlugUK)
UK
Shelly Plus Plug UK

Available from:
Amazon.co.uk





Manufacturer:
Shellystore.co.uk

Install method:
MgOS to Tasmota

GPIO #Component
GPIO00 None
GPIO01 None
GPIO02 None
GPIO03 None
GPIO04 Button 1
GPIO05 None
GPIO09 None
GPIO10 None
GPIO12 Led 1
GPIO13 None
GPIO14 Led 3
GPIO15 None
GPIO16 None
GPIO17 None
GPIO18 None
GPIO19 None
GPIO20 None
GPIO21 None
GPIO22 None
GPIO23 None
GPIO24 None
GPIO25 HLWBL CF1
GPIO26 Led 2
GPIO27 HLWBL SELi
GPIO28 None
GPIO29 None
GPIO30 None
GPIO31 None
GPIO32 Relay 1
GPIO33 BL0937 CF
GPIO34 None
GPIO35 None
GPIO36 None
GPIO37 None
GPIO38 None
GPIO39 None
Configuration
Edit on GitHub
{"NAME":"Shelly Plus Plug UK","GPIO":[0,0,0,0,32,0,0,0,288,0,290,0,0,0,0,0,0,0,0,0,0,2656,289,2624,0,0,0,0,224,2720,0,0,0,0,0,0],"FLAG":0,"BASE":1}
For more accurate energy consumption measurements this device requires power monitoring calibration.

Follow guidance as per https://github.com/tasmota/mgos32-to-tasmota32?tab=readme-ov-file, and load Shelly Plug Plug EU Auto-Configuration. Then update template.

Thanks to PDW for thier tear down guide: https://community.home-assistant.io/t/shelly-plus-plug-uk-teardown-and-pin-outs/648541
