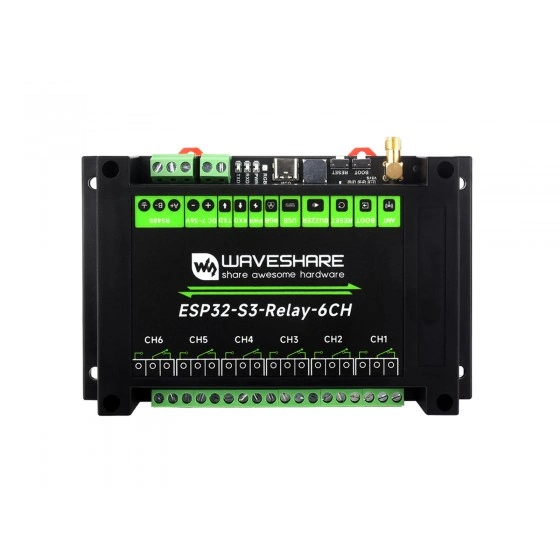

Waveshare Industrial 6-Channel Relay Module (ESP32-S3-Relay-6CH)
Available from:
Amazon.com
Amazon.de
Aliexpress.com
Manufacturer:
Waveshare.com
Install method:
USB to Serial
| GPIO # | Component |
|---|---|
| GPIO00 | ??? |
| GPIO01 | ??? |
Configuration
{"NAME":"Waveshare ESP32-S3-Relay-6CH","ARCH":"ESP32S3","GPIO":[1,224,225,1,1,1,1,1,1,1,1,1,1,1,1,1,1,3200,3232,1,1,480,0,0,0,0,0,1376,1,1,226,227,0,1,228,229,1,1],"FLAG":0,"BASE":1}RGB LED has RED and GREN channel swapped which require tasmota recompile with swapped buffers to work correctly. The device also has Pico Hat under cover which can include other sensors/features.
