Aubess 15W E27 RGBCCT Bulb
Available from:
Aliexpress.com
Install method:
Replace module
| GPIO # | Component |
|---|---|
| GPIO00 | User |
| GPIO01 | User |
| GPIO02 | User |
| GPIO03 | PWM 1 |
| GPIO04 | PWM 2 |
| GPIO05 | PWM 3 |
| GPIO06 | PWM 4 |
| GPIO07 | PWM 5 |
| GPIO08 | User |
| GPIO09 | User |
| GPIO010 | User |
| GPIO011 | None |
| GPIO012 | None |
| GPIO013 | None |
| GPIO014 | None |
| GPIO015 | None |
| GPIO016 | None |
| GPIO017 | None |
| GPIO018 | User |
| GPIO019 | User |
| GPIO020 | User |
| GPIO021 | User |
Configuration for ESP32-C3
{"NAME":"Aubess Bulb","GPIO":[1,1,1,416,417,418,419,420,1,1,1,0,0,0,0,0,0,0,1,1,1,1],"FLAG":0,"BASE":1}
This device uses
CB2L
module which needs to be replaced with
DMP-L1 or DT-ESP-C05
. Besides the module, this process will require a heat gun, soldering tools and moderate soldering skill. Read more about module replacement in a detailed guide.

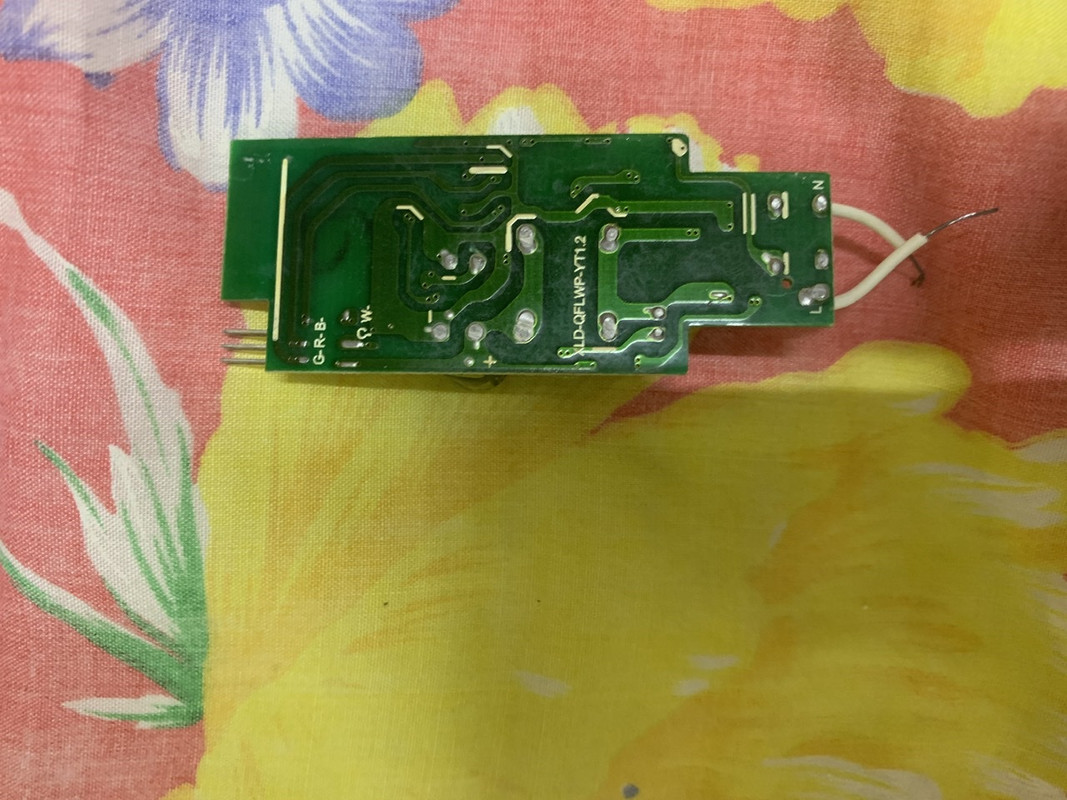

Bulb contains CB2L (BK7231N) chip that needs to be desoldered and replaced with ESP32-C3-C05
“
