Tuya Alarm PIR Motion Sensor (CT61W)
Tuya Alarm PIR
GPIO #Component
GPIO00 None
GPIO01 None
GPIO02 None
GPIO03 None
GPIO04 None
GPIO05 None
GPIO09 None
GPIO10 None
GPIO12 None
GPIO13 Switch 1
GPIO14 Buzzer
GPIO15 Relay_i 1
GPIO16 None
GPIO17 None
Configuration
{"NAME":"CT61W","GPIO":[0,0,0,0,0,0,0,0,0,160,480,256,0,0],"FLAG":0,"BASE":18}
Use code BLAKADDER10 when buying from mediarath.de Tasmota category for a 10% discount. Code is valid until end of 2022.

Tutorial to flash Tuya Motion PIR - No Solder Method

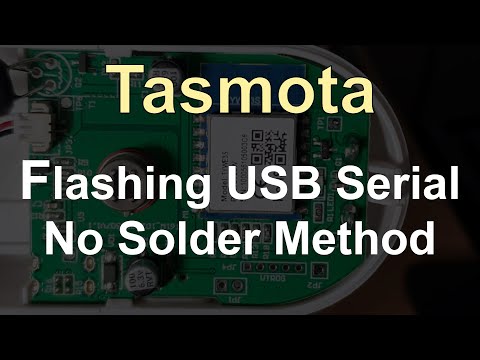

Tasmota Firmware - Flashing USB Serial - No Solder Method with Tasmotizer

My device came with a blue led cover due the image is for red.

To get the PIR to send a proper on/off status, set the switch mode to 2

SwitchMode1 2

Buzzer is the alarm speaker

Switch1 is the PIR sensor

Relay1 is for the led light on/off

Not sure if the side button should be exposed somehow

Works powered over USB-C without the battries (they should be used as backup as instructed in the manual)

Inside Top Inside Bottom Box Top Box Bottom

Pinout

.
